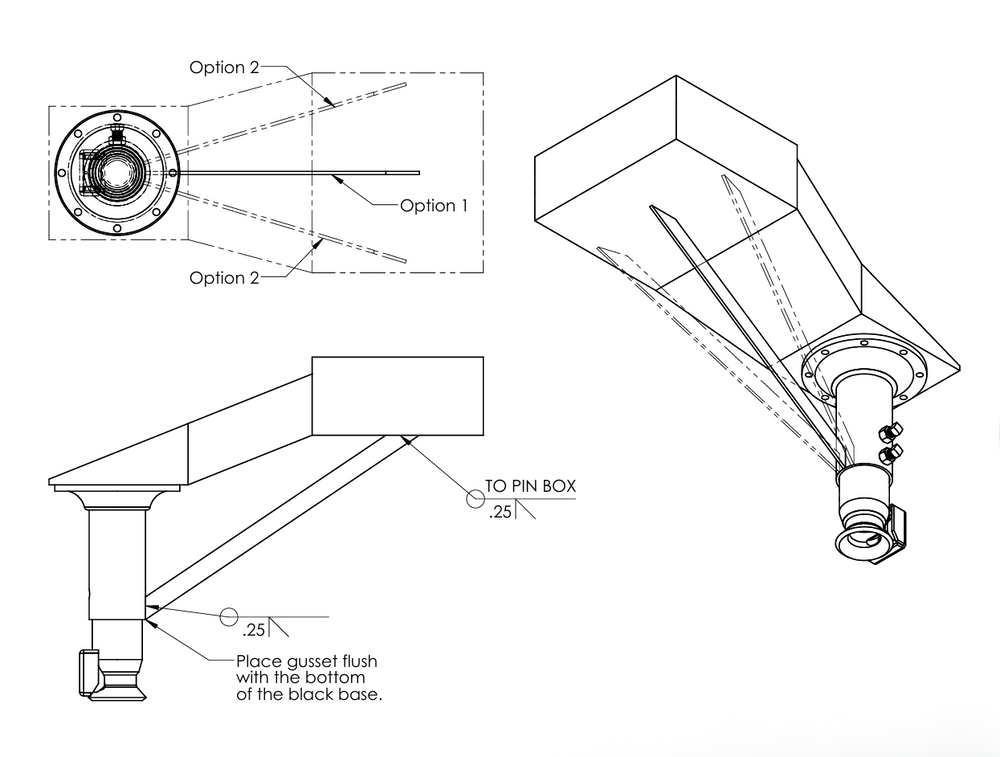

A gusset can be added by triangulating the adapter to the rear of the pin box. This is done by welding a piece of steel from the lowest portion of the black base of the Ranch Hitch Adapter to the back side of the trailer's pin box. The gusset should be positioned so it does not interfere with the breakaway brake system or electrical harnesses.

If you are considering an alternative setup, Andersen's Ultimate 5th Wheel Connection is another option. Unlike adapters, it does not change the stress applied to the trailer's pin box.

Here is a link to the Ranch Hitch Adapter manual for reference. If you have an extended pin box please call so we can give you tips with that particular install.

Several factors affect whether the Ranch Hitch Adapter will work well with a longer trailer, including trailer weight, pin box length, and overall leverage. Longer trailers and extra-long or heavy pin boxes can create additional leverage once an adapter is installed. This added leverage can increase movement between the pin box and the trailer frame, which may lead to bucking during towing or premature wear on the pin box or frame components.

Because every trailers setup is different, the best way to confirm compatibility is through proper installation and a careful test tow. Install the adapter according to the recommended torque specifications, but avoid welding or permanently fastening it until after testing the setup.

During the test tow, pay attention to how the trailer behaves when accelerating and braking. If you do not feel pushing, pulling, or unusual movement, the setup is likely working properly. If you notice flexing at the pin box, you may need to add reinforcement such as a gusset, or consider a different towing setup.

The Ranch Hitch Adapter is designed to prevent movement between the stinger and the base. It is the only gooseneck adapter that has received V-19 certification, allowing it to be used on certain D.O.T. vehicles after passing rigorous testing standards.

The adapter uses two set bolts that pass through the black base and tighten into the silver stinger. These are true set screws, which slightly cut into the steel of the stinger when tightened. This creates a very strong mechanical connection that is rated to handle the adapter's 6,000 lbs tongue weight capacity with a large safety factor.

Andersen sells thousands of Ranch Hitch Adapters every year, and in normal use there have been no reported cases of the stinger sliding vertically or horizontally after proper installation. Even in some accident situation, such as rear-end or side impacts, the connection between the two main pieces has remained secure.

Using set screws rather than pre-threaded holes also allow the adapter to remain fully adjustable. This adjustability lets users change the ride height of the adapter so the trailer can be kept level behind different tow vehicles.

Some customers who want additional peace of mind have chosen to weld the silver stinger to the black base after setting the correct height. This step is not required, but it is an option if a customer prefers the added reassurance.

A “rubber band” feeling while towing can come from a few different factors. First, make sure your truck and trailer are level when connected. An uneven setup can create a stretching or bouncing sensation as you accelerate or brake.

Second, trailers with weight positioned far behind the rear axle, such as toy haulers, can experience increased sway. The more weight placed toward the back of the trailer, the more noticeable the sway can become. If the issue gets worse when the rear area is loaded, you may benefit from adding sway control products to the tow vehicle.

Third, the sensation can also be caused by flexing in the pin box. If the pin box is moving under load, adding reinforcement can help. A qualified welder can add support by triangulating the pin box structure, which reduces flex under acceleration and braking.

If issues persist, it is always a good idea to contact customer support or have a towing / RV professional inspect the setup to ensure everything is operating safely.

The threads are traditional regular threads.

Andersen Manufacturing strongly recommends not using the Ranch Hitch Adapter- or any gooseneck adapter- with a MORryde or other movable/cushioned pin box.

The Ranch Hitch Adapter works very well with a traditional solid (static) pin box, but cushioned pin boxes are designed to flex and pivot as part of their suspension system. Adding a gooseneck adapter changes the pivot point and leverage on the pin box, which can lead to premature wear or failure of the internal components.

Products such as the MORryde pin box are excellent when used with a traditional fifth-wheel hitch plate in the truck bed. However, using them with a gooseneck adapter can void the pin box warranty, create an uncomfortable ride, and is not recommended by either Andersen Manufacturing or MORryde International.
