Rear-end sagging, loose steering, and trailer bounce turn towing into a stressful experience. Weight distribution hitches solve these problems by redistributing tongue weight across all axles. Understanding when you need one and how different systems work helps you tow safely and comfortably.
What Is a Weight Distribution Hitch
A weight distribution hitch redistributes tongue weight from the rear of your tow vehicle to the front axle and trailer axles. Standard ball mounts concentrate all tongue weight at one point, causing the rear to sag and the front to rise. This reduces steering control, front brake effectiveness, and overall stability.
Weight distribution hitches correct this imbalance by transferring weight forward. The result is improved steering, better braking, reduced rear axle stress, and increased stability while towing.
When Do You Need a Weight Distribution Hitch?
Use a weight distribution hitch when your trailer weighs more than half your tow vehicle's gross vehicle weight rating (GVWR). For a 6,000-pound truck, that means trailers over 3,000 pounds.
Visual Signs You Need Weight Distribution
- Rear end sags noticeably when hitched
- Headlights point upward due to front rising
- Steering feels light or unresponsive
- Trailer bounces excessively on uneven roads
- Vehicle squats heavily under tongue weight
Tongue Weight Guidelines
Proper tongue weight should be 10-15% of total trailer weight. Below 10 percent causes sway. Above 15% overloads the rear axle and creates the problems weight distribution hitches solve. Travel trailers maintain this range by design, but cargo trailers with variable loads often exceed these limits.
How Traditional Weight Distribution Systems Work
Traditional weight distribution hitches use spring bars that connect the hitch head to the trailer frame. These bars mount 23 to 35 inches from the coupler and act like a splint, forcing the tow vehicle and trailer to work as one unit.
When tensioned properly, spring bars reduce vertical pivoting at the hitch ball. They create leverage that applies upward force on the trailer tongue and downward force on the front of the tow vehicle, restoring weight to the front axle.
Round Bar vs Trunnion Bar Systems
Round bar systems use curved spring bars that clip into the hitch head from below. They cost less but provide less ground clearance and can scrape on rough roads. Trunnion bar systems use square steel bars that slide in from the side, offering better clearance and easier installation. Trunnion bars handle heavier loads but cost slightly more.
Setup Complexity
Traditional systems require careful adjustment of spring bar tension, precise bracket positioning, and regular re-tensioning if loads change. The bars are heavy (often 30 to 40 lbs each), require pry bars for installation, and need removal for backing up with some sway control systems. Setup takes time and physical effort, especially for frequent towing.
The Andersen Weight Distribution Hitch Difference
At Andersen Hitches, we engineered a fundamentally different approach to weight distribution that eliminates heavy spring bars entirely. Our system uses interconnected tension chains and motion-dampening springs combined with a friction cone ball housing for integrated sway control.

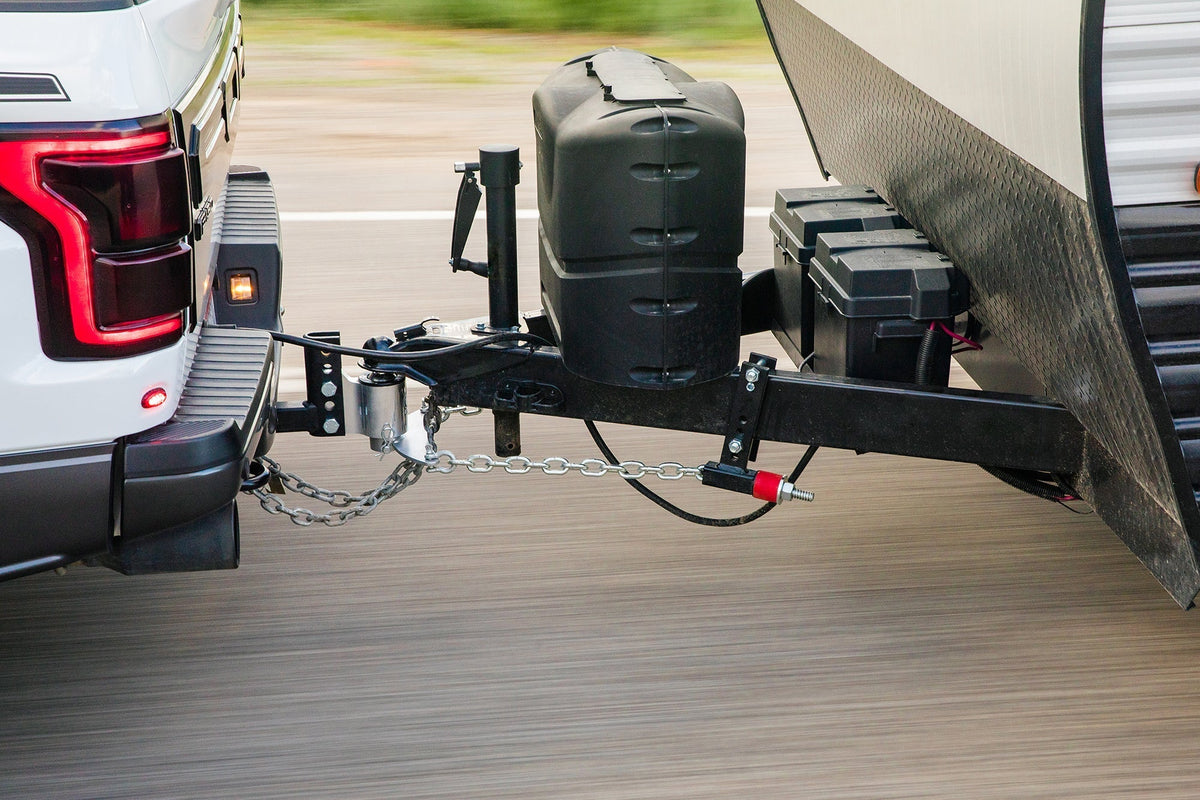

How the Andersen System Works
The Andersen Weight Distribution Hitch uses chains and patented motion-dampening springs that pull at right angles to vertical movement. This eliminates the diving board effect of traditional spring bars that can cause continued bouncing after hitting bumps. The chains efficiently transfer weight forward to the front axle without lifting.
The tapered ball and friction cone housing provide self-adjusting sway control. As tongue weight increases, friction increases proportionally, providing more sway control when you need it most. The system requires at least 300 lbs of tongue weight to activate the sway control mechanism.
Key Advantages of the Andersen Design
Lightweight construction: Under 60 lbs total (vs. 80+ lbs for traditional systems)
No pry bars needed: Chains hook up easily without wrestling heavy spring bars
Quiet operation: Silent ride with no metal-on-metal noise
Grease-free system: Ball and coupler move as one unit, no messy grease required
True motion dampening: Patented system eliminates bounce, not just weight distribution
Integrated sway control: Self-adjusting friction system, no separate devices needed
No removal for backing: Chains stay connected for backing up and tight turns
One-pin removal: Quick disconnect from tow vehicle
Compact profile: Slim design won't trigger backup sensors like bulky spring bar systems
Setup Simplicity
The Andersen hitch installs faster and adjusts easier than traditional systems. Mount the brackets to your trailer frame, attach the chains, and adjust tension with simple adjustments. No heavy lifting, no pry bars, no complicated spring bar positioning. The system works equally well across varying loads without constant re-adjustment.
Choosing the Right Weight Distribution Hitch
Select a weight distribution hitch based on your gross trailer weight and tongue weight. The Andersen system comes in multiple configurations to match different towing needs.
Andersen Weight Distribution Models
Available with 4-inch, 6-inch, and 8-inch drop/rise options to accommodate different vehicle and trailer heights. Choose between 2-inch and 2-5/16-inch ball sizes. Frame brackets fit 3-inch, 4-inch, 5-inch, and 6-inch trailer frames . All models feature the same patented motion-dampening system and integrated sway control.
Weight Capacity Considerations
Match your hitch to your actual loaded trailer weight, not dramatically above it. Oversizing creates a harsh ride because the system is too stiff for your load. Calculate your typical maximum load and size accordingly.
Dual Purpose Design
The Andersen hitch doubles as a standard ball mount for towing lighter loads without weight distribution. This versatility means one hitch handles both your travel trailer requiring weight distribution and utility trailer that does not.
Real-World Performance
Towing with proper weight distribution transforms the experience from stressful to confident. The Andersen system delivers stability that users consistently describe as remarkably smooth and quiet. The motion-dampening chains eliminate the bouncing that traditional spring bars can create, especially on rough roads.
The integrated sway control self-adjusts based on tongue weight, providing stronger correction when needed without driver input. This automatic response helps maintain control when passing trucks, encountering crosswinds, or navigating curves at highway speeds.
The compact, lightweight design makes frequent hitching practical rather than dreaded. Many users who previously avoided certain trips due to the hassle of traditional weight distribution setup now tow more confidently and frequently with the simplified Andersen system.
Installation and Setup
Installing the Andersen weight distribution hitch requires mounting brackets to your trailer A-frame and adjusting chain tension. The process is straightforward compared to traditional systems.
Initial Installation
Mount the frame brackets to your trailer at the specified distance from the coupler (varies by tongue weight). Install the ball assembly in your receiver. Level both vehicles and attach the chains, adjusting tension to restore proper ride height. The system includes detailed instructions, and most installations complete in under an hour.
Daily Hookup
Connecting takes minutes. Back up to the trailer, couple the ball, attach the chains to the brackets, and connect the electrical. No removing systems for backing, no heavy bar wrestling, no pry bars required. The lightweight design and simple connection make setup quick enough for frequent use.
Maintenance Requirements
The Andersen system requires minimal maintenance compared to traditional hitches. The grease-free ball design eliminates regular cleaning and re-greasing. Inspect chains and mounting hardware before trips, verify proper tension, and check that springs and friction components show no wear or damage.
The friction cone provides long service life but will eventually require replacement with heavy use. Andersen offers replacement components and backs the system with a warranty on the friction cone and lifetime warranty on other components.
Do You Need a Weight Distribution Hitch?
If your trailer weighs more than half your vehicle's GVWR, your rear sags when hitched, or steering feels loose when towing, you need a weight distribution hitch. The question becomes which system best meets your needs.
Traditional spring bar systems work effectively but require heavy lifting, complex setup, and regular maintenance. The Andersen weight distribution hitch eliminates these drawbacks while providing superior motion dampening and integrated sway control. The lightweight compact design makes frequent towing practical.
At Andersen Hitches, we engineered our weight distribution system specifically to solve the problems towers face with traditional designs. We eliminated unnecessary weight and complexity while improving performance. The result is a system that users describe as remarkably quiet and incredibly stable.
Weight distribution transforms towing from stressful to controlled. The Andersen system delivers this transformation with innovation that makes setup easier, operation quieter, and towing more confident. Choose the system that makes towing something you look forward to rather than dread.
